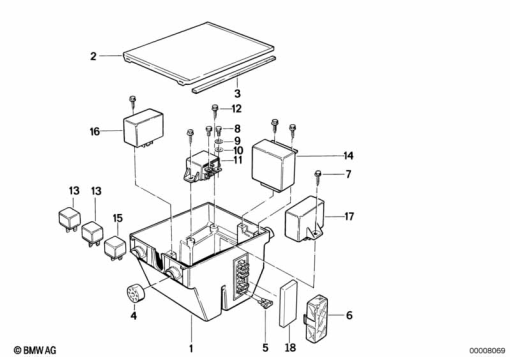

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 305 057 | FUSE BOX | - | |
| 2 | 61 13 1 459 155 | COVER | - | |
| 3 | 61 13 1 459 181 | GASKET - 190MM | - | |
| 4 | 51 16 1 459 064 | SUSPENSION | - | |
| 5 | 61 13 1 372 526 | FUSE BLUE - 15A | - | |
| 6 | 61 13 2 305 058 | COVER | - | |
| 7 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 8 | 07 11 9 913 218 | HEX BOLT - M5X10 | - | |
| 9 | 07 11 9 936 107 | TOOTH WASHER - A5,1 | - | |
| 10 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 11 | 61 31 1 459 008 | STARTER RELAY | - | |
| 12 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 13 | 61 31 1 459 675 | RELAY - ABS/ÖFFNER/BLUE (to 07/93) | - | |
61 36 2 306 352 | MINI RELAY, OPENER, TURQUOISE BLUE (from 07/93)Alternative for position 13 | - | ||
| 14 | 61 31 1 459 224 | RELAY FOR FLASHER | - | |
| 15 | 61 31 1 459 676 | SAFETY RELAY ABS (to 07/93) | - | |
61 31 1 459 677 | RELAY - SCHLIEßERAlternative for position 15 | - | ||
| 17 | 61 31 1 459 003 | BULB TESTING DEVICE | - | |
| 18 | 46 63 2 307 115 | GASKET - 180MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
