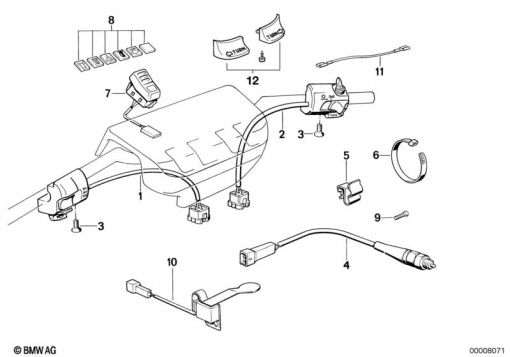

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 2 305 231 | COMBINATION SWITCH LEFT (to 08/95) | - | |
61 31 2 306 058 | LEFT COMBINAT.SWITCH/WINDSHIELD SWITCH (from 08/95)Alternative for position 1 | - | ||
61 12 2 305 687 | CONNECTING LINE (from 08/95)Alternative for position 1 | - | ||
| 2 | 61 31 2 305 232 | COMBINATION SWITCH RIGHT | - | |
61 31 2 305 233 | COMBINATION SWITCH WITH CONTINUOUS LIGHTAlternative for position 2 | - | ||
| 3 | 07 11 9 928 426 | CSK.FILLISTER HEAD SREW - M4X12 | - | |
| 4 | 61 31 1 459 569 | SWITCH | - | |
| 5 | 07 14 7 547 239 | FIXING CLAMP - A=3,5 - 6,0MM | - | |
07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MMAlternative for position 5 | - | ||
| 6 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 7 | 61 31 1 459 305 | HAZARD WARNING SWITCH | - | |
61 31 1 459 700 | SWITCH ABSAlternative for position 7 | - | ||
61 31 2 305 088 | SWITCH PLATE ADJUSTABLEAlternative for position 7 | - | ||
| 8 | 61 31 1 459 359 | FOG TAIL LAMP SYMBOL | - | |
61 31 1 459 360 | SYMBOL HANDLE HEATETAlternative for position 8 | - | ||
61 31 1 459 363 | CLIP WITHOUT SYMBOLAlternative for position 8 | - | ||
61 31 1 459 367 | SYMBOL HAZZARD WARNINGAlternative for position 8 | - | ||
61 31 1 459 703 | ANTI BLOCK SYSTEM SYMBOLAlternative for position 8 | - | ||
61 31 2 305 193 | SYMBOL PLATE ADJUSTABLEAlternative for position 8 | - | ||
61 31 2 305 197 | FOG TAIL LAMP SYMBOL - ORANGEAlternative for position 8 | - | ||
| 9 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | - | |
| 10 | 61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
| 12 | 61 31 9 062 462 | SET: REPAIR KIT FLASHER KNOB | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
