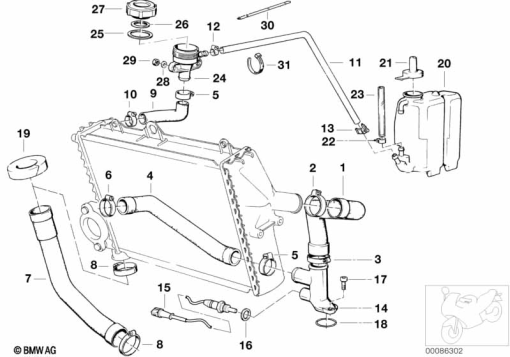

Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 12 1 464 160 | WATER HOSE | - | |
| 2 | 07 12 9 952 117 | HOSE CLAMP - L37-43 | - | |
| 3 | 07 12 9 952 117 | HOSE CLAMP - L37-43 | - | |
| 4 | 17 12 1 464 622 | WATER HOSE | - | |
| 5 | 07 12 9 952 113 | HOSE CLAMP - L28-33 | - | |
| 6 | 07 12 9 952 113 | HOSE CLAMP - L28-33 | - | |
| 7 | 17 12 1 460 266 | WATER HOSE | - | |
| 8 | 07 12 9 952 117 | HOSE CLAMP - L37-43 | - | |
| 9 | 17 12 1 460 314 | WATER HOSE | - | |
| 10 | 07 12 9 952 113 | HOSE CLAMP - L28-33 | - | |
| 11 | 17 11 1 152 866 | WATER HOSE - 880MM | - | |
| 12 | 17 11 1 460 862 | HOSE CLAMP - 10MM | - | |
| 13 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 14 | 11 53 1 464 158 | WATER CONNECTOR (to 07/93) | - | |
11 53 1 464 711 | WATER CONNECTOR (from 07/93)Alternative for position 14 | - | ||
| 15 | 13 62 2 242 184 | COOLANT TEMPERATURE SENSOR - M12X1,5 (to 07/93) | - | |
12 61 1 341 602 | OIL TEMPERATURE SENSOR (from 07/93)Alternative for position 15 | - | ||
| 16 | 07 11 9 963 130 | GASKET RING - A12X15,5 AL (to 07/93) | - | |
07 11 9 963 200 | GASKET RING - A14X18-AL (from 07/93)Alternative for position 16 | - | ||
| 17 | 11 13 1 461 343 | SCREW - M6X30 | - | |
| 18 | 11 11 1 460 392 | O-RING - 27,3X2,4 | - | |
| 20 | 17 11 1 464 650 | EXPANSION TANK (to 07/93) | - | |
| - | 17 11 1 152 866 | WATER HOSE - 880MM (to 07/93) | - | |
| 20 | 17 11 1 464 650 | EXPANSION TANK | - | |
| - | 17 11 1 460 497 | PIPE | - | |
| 21 | 17 11 1 465 286 | COVER | - | |
| 24 | 17 11 1 460 313 | CONTAINER | - | |
| 25 | 17 11 1 460 316 | GASKET | - | |
| 26 | 17 11 1 460 759 | GASKET | - | |
| 27 | 17 11 1 464 720 | LOCK | - | |
| 28 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 29 | 07 11 9 905 710 | HEX NUT - M5 | - | |
| 30 | 32 73 1 451 809 | CABLE TIE - L=183MM | - | |
| 31 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
