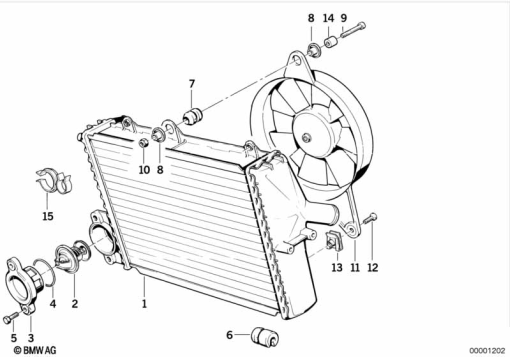

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 1 464 568 | RADIATOR (from 08/92) | - | |
| 2 | 17 11 1 460 716 | THERMOSTAT | - | |
| 3 | 17 11 1 460 717 | COVER | - | |
| 4 | 17 11 1 460 718 | O-RING - 47,29X2,62 | - | |
| 6 | 17 11 1 460 219 | 33.51 | - | |
| 7 | 17 11 1 460 768 | RUBBER GROMMET | - | |
| 8 | 17 11 1 460 767 | SPACER BUSH | - | |
| 9 | 07 11 9 920 003 | FILLISTER-HEAD SCREW - M6X55 | - | |
| 10 | 07 12 9 905 542 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | - | |
| 11 | 17 40 1 461 579 | 1.39 | - | |
| 12 | 07 11 9 900 816 | COUNTERSUNK HEAD SCREW - M6X16 | - | |
| 14 | 17 11 1 461 860 | SPACER BUSH | - | |
| 15 | 17 12 1 464 326 | HOLDER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
