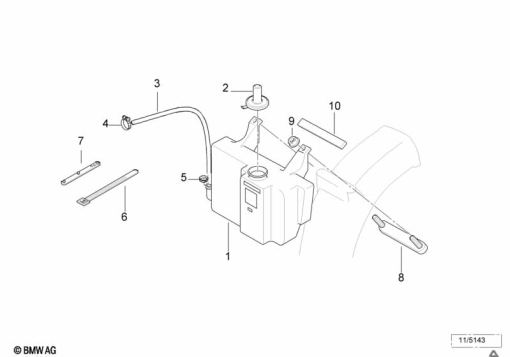

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 1 464 718 | EXPANSION TANK (from 07/93) | - | |
| 2 | 17 11 1 465 286 | COVER | - | |
| 3 | 17 11 1 152 866 | WATER HOSE - 880MM | - | |
| 4 | 17 11 1 460 862 | HOSE CLAMP - 10MM | - | |
| 5 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 6 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 7 | 32 73 1 451 809 | CABLE TIE - L=183MM | - | |
| 8 | 46 62 1 453 328 | SHACKLE (from 07/93) | - | |
| 9 | 07 14 7 153 450 | SELF-LOCKING HEX NUT - M6 | - |
