K1100LT (89V2) | Brakes

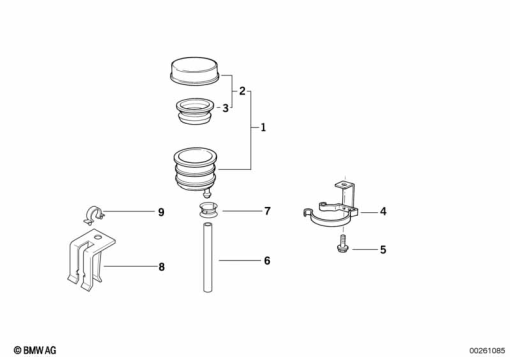

REAR WHEEL BRAKE, FLUID CONTAINER
Diagram #34_0661 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 2 314 082 | EXPANSION TANK (from 12/92) | 1 | |
| 2 | 34 31 2 314 091 | COVER (from 12/92) | 1 | |
| 3 | 34 31 2 314 092 | RUBBER COVER (from 12/92) | 1 | |
| 4 | 34 31 2 312 994 | HOLDER (from 12/92) | 1 | |
| 5 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | 1 | |
| 6 | 34 32 1 457 880 | HOSE | 1 | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | 1 | |
| 8 | 34 32 2 332 013 | CLAMP | 1 | |
| 9 | 12 52 1 733 330 | CABLE HOLDER - D=14,3 | 1 |
