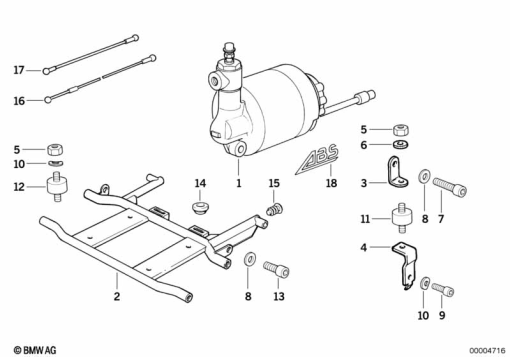

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 51 1 457 466 | HYDRAULIC UNIT, REAR (08/92 to 07/93) | - | |
34 51 2 310 442 | HYDRAULIC UNIT, FRONT (08/92 to 07/93)Alternative for position 1 | - | ||
| 2 | 34 52 2 312 986 | HOLDER (08/92 to 07/93) | - | |
| 3 | 34 52 2 310 452 | SUPPORT (08/92 to 07/93) | - | |
34 52 2 312 620 | SUPPORT LEFT (08/92 to 07/93)Alternative for position 3 | - | ||
| 4 | 34 52 2 311 514 | SUPPORT LEFT (08/92 to 07/93) | - | |
34 52 2 312 615 | SUPPORT RIGHT (08/92 to 07/93)Alternative for position 4 | - | ||
| 5 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (08/92 to 07/93) | - | |
| 6 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (08/92 to 07/93) | - | |
| 7 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS (08/92 to 07/93) | - | |
| 8 | 07 11 9 904 826 | Washer | - | |
07 11 9 931 697 | WASHER - 8,4 (08/92 to 07/93)Alternative for position 8 | - | ||
| 10 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (08/92 to 07/93)Alternative for position 10 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 10 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (08/92 to 07/93)Alternative for position 10 | - | ||
52 53 1 453 322 | SHIM (08/92 to 07/93)Alternative for position 10 | - | ||
| 11 | 61 21 2 305 050 | RUBBER MOUNTING (08/92 to 07/93) | - | |
| 12 | 34 52 2 312 621 | RUBBER MOUNTING (08/92 to 07/93) | - | |
| 13 | 07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3 (08/92 to 07/93) | - | |
| 14 | 61 21 2 305 034 | GROMMET (08/92 to 07/93) | - | |
| 15 | 46 54 1 239 841 | BLIND PLUG (08/92 to 07/93) | - | |
| 16 | 61 12 1 459 865 | TUBING (08/92 to 07/93) | - | |
| 17 | 61 12 1 459 866 | TUBING (08/92 to 07/93) | - | |
| 18 | 51 14 1 458 105 | DECAL, RED (08/92 to 07/93) | - | |
51 14 2 310 195 | DECAL, WHITE (08/92 to 07/93)Alternative for position 18 | - | ||
51 14 2 310 935 | DECAL, SILVER (08/92 to 07/93)Alternative for position 18 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
