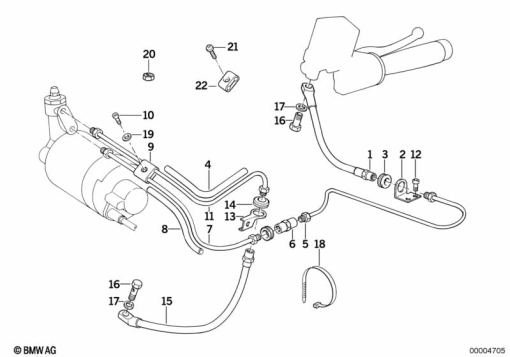

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 320 214 | BRAKE HOSE (to 07/93) | 1 | |
| 2 | 34 32 2 311 137 | HOLDER (to 07/93) | 1 | |
| 3 | 34 32 1 236 462 | GROMMET (to 07/93) | 1 | |
| 4 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM (to 07/93) | 1 | |
| 5 | 34 32 2 311 153 | BRAKE PIPE (to 07/93) | 1 | |
| 6 | 34 32 6 757 282 | INTERMEDIATE PIECE - M10X1 (to 07/93) | 1 | |
| 8 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM (to 07/93) | 1 | |
| 8 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM (to 07/93) | 1 | |
| 8 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM (to 07/93) | 1 | |
| 9 | 34 32 1 108 212 | CLAMP (to 07/93) | 1 | |
| 10 | 46 54 2 322 498 | FILLISTER-HEAD SCREW - M6X18 (to 07/93) | 1 | |
| 11 | 34 32 2 311 155 | BRAKE PIPE (to 07/93) | 1 | |
| 11 | 34 32 2 311 157 | BRAKE PIPE (to 07/93) | 1 | |
| 12 | 61 12 2 322 492 | FILLISTER-HEAD SCREW - M6X10 (to 07/93) | 1 | |
| 14 | 34 32 1 236 462 | GROMMET (to 07/93) | 1 | |
| 14 | 34 32 2 310 149 | GROMMET (to 07/93) | 1 | |
| 15 | 34 32 2 312 206 | BRAKE HOSE (to 07/93) | 1 | |
| 16 | 34 32 1 242 205 | HOLLOW BOLT (to 07/93) | 1 | |
| 17 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU (to 07/93) | 1 | |
| 19 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (to 07/93) | 1 | |
| 20 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (to 07/93) | 1 | |
| 21 | 34 32 1 458 252 | SCREW (to 07/93) | 1 | |
| 22 | 34 32 1 458 272 | HOLDER (to 07/93) | 1 |
