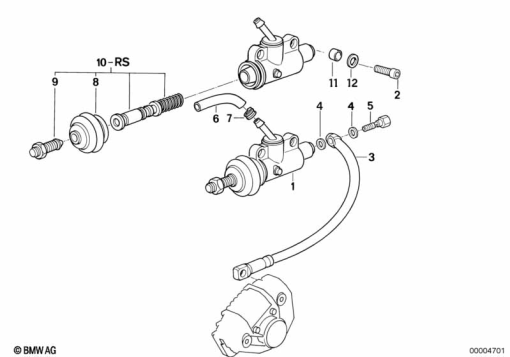

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 2 310 867 | BRAKE MASTER CYLINDER - D=12MM MAGURA (to 07/93) | - | |
34 31 1 458 142 | BRAKE MASTER CYLINDER - D=12MM MAGURA (from 07/93)Alternative for position 1 | - | ||
| 2 | 34 31 1 451 985 | FILLISTER-HEAD SCREW - M6X16 | - | |
34 31 2 311 990 | FILLISTER-HEAD SCREW - M6X30Alternative for position 2 | - | ||
| 3 | 34 32 2 311 133 | BRAKE HOSE | - | |
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 6 | 34 32 1 457 880 | HOSE | - | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 8 | 34 31 1 454 435 | RUBBER BOOT - MAGURA | - | |
| 9 | 34 31 1 451 885 | ADJUSTER - MAGURA | - | |
| 10 | 34 31 2 311 064 | SET: REPAIR KIT BRAKE MASTER CYLINDER - D=12MM MAGURA | - | |
| 11 | 46 71 2 310 701 | SPACER BUSH | - | |
| 12 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 12 | - |
