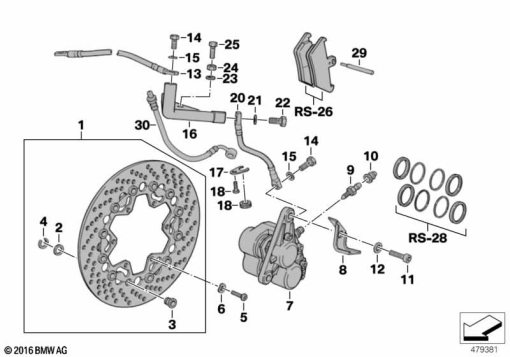

Parts List (32)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 2 310 483 | BRAKE DISK LEFT | - | |
34 11 2 310 484 | BRAKE DISC RIGHTAlternative for position 1 | - | ||
| 2 | 34 11 2 310 088 | WASHER | - | |
| 3 | 34 11 2 310 086 | ROLL PIN | - | |
34 11 2 310 995 | ROLLER WITH SNAP RINGAlternative for position 3 | - | ||
| 4 | 34 11 2 310 089 | LOCK RING | - | |
| 5 | 36 31 7 709 543 | OVAL HEAD SCREW - M8X25-10.9 ZNS3 | - | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 7 | 34 11 2 331 627 | BRAKE CALIPER, LEFT - D=32/34MM | - | |
34 11 2 331 628 | CALIPER RIGHT - D=32/34MMAlternative for position 7 | - | ||
| 9 | 34 21 2 330 310 | VENT SCREW - M10 | - | |
| 10 | 34 21 1 236 794 | DUST CAP | - | |
| 11 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS | - | |
| 12 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 13 | 34 32 2 312 205 | BRAKE HOSE | - | |
| 14 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 15 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 16 | 34 32 2 314 898 | DISTRIBUTION PIECE | - | |
| 17 | 34 32 2 312 209 | HOLDER | - | |
| 18 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 19 | 34 32 2 310 917 | GROMMET | - | |
| 20 | 34 32 2 312 207 | BRAKE HOSE | - | |
| 21 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 22 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 23 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 25 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 26 | 34 11 7 663 764 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 26 | - | ||
| - | 34 11 2 330 418 | SET: MOUNTING PARTS SET | - | |
| 28 | 34 11 2 331 631 | SET: REPAIR SET BRAKE CALIPER | - | |
| - | 34 11 2 310 526 | GREASE, SILICONE - 50G | - | |
| 29 | 34 11 2 330 418 | SET: MOUNTING PARTS SET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
