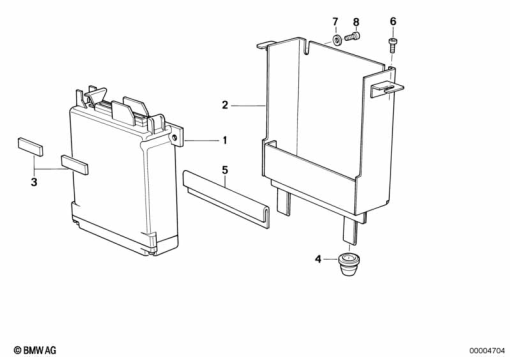

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 1 459 924 | CONTROL UNIT ABS (to 07/93) | - | |
| 2 | 61 21 2 310 460 | HOLDER (to 07/93) | - | |
| 3 | 62 21 1 459 439 | SEALING STRIP - 60X15X4 (to 07/93) | - | |
| 4 | 61 21 2 305 034 | GROMMET (to 07/93) | - | |
| 5 | 62 21 1 459 438 | GASKET - 140X15X4MM (to 07/93) | - | |
| 6 | 07 11 9 920 004 | FILLISTER-HEAD SCREW - M5X12 (to 07/93) | - | |
| 8 | 07 11 9 905 138 | HEX BOLT - M5X 12MM (to 07/93) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
