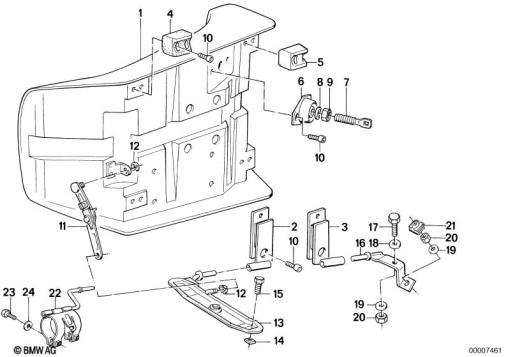

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 2 300 250 | SINGLE SEAT | - | |
52 53 2 300 252 | SEAT COVER VINYL BLACKAlternative for position 1 | - | ||
| 2 | 52 53 2 300 340 | HINGE | - | |
| 3 | 52 53 2 300 346 | HINGE | - | |
| 4 | 52 53 1 451 207 | BUMP STOP | - | |
| 5 | 52 53 2 300 347 | BUMP STOP | - | |
| 6 | 52 53 1 451 209 | RUBBER MOUNTING | - | |
| 7 | 52 53 1 451 212 | CATCH | - | |
| 8 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 9 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/96) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 9 | - | ||
| 10 | 46 63 2 322 460 | FILLISTER HEAD WITH WASHER - M6X12-Z3-8.8 | - | |
| 11 | 52 53 1 451 650 | SUPPORT | - | |
| 12 | 07 12 9 934 319 | CLAMPING PLATE - D=6MM | - | |
| 13 | 52 53 2 300 330 | HOLDER (to 04/85) | - | |
| 14 | 07 11 9 904 050 | SQUARE NUT - M6 (to 04/85) | - | |
| 15 | 07 11 9 913 013 | HEX BOLT - M6X12 (to 04/85) | - | |
| 16 | 52 53 2 300 336 | BRACKET REAR | - | |
| 17 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | - | |
| 18 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 19 | 07 11 9 933 082 | SPRING WASHER - B6 | - | |
| 20 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 21 | 52 53 2 303 110 | NUT HOLDER - M6 | - | |
| 22 | 52 53 2 303 103 | CLAMP (from 04/85) | - | |
| 23 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 24 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (from 04/85) | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (from 04/85)Alternative for position 24 | - | ||
| - | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
| 24 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 24 | - |
