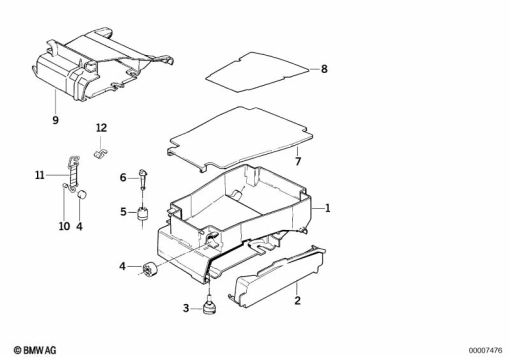

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 16 1 459 061 | TOOL BOX | 1 | |
| 2 | 51 16 1 459 119 | MUDGUARD | 1 | |
| 3 | 51 16 1 459 067 | BUMP STOP | 1 | |
| 4 | 51 16 1 459 064 | SUSPENSION | 1 | |
| 5 | 51 16 1 459 068 | BUMP STOP | 1 | |
| 6 | 51 16 1 459 069 | 51 16 1 459 069 | 1 | |
| 7 | 51 16 1 459 062 | COVER | 1 | |
| 8 | 52 53 1 453 576 | RUBBER MAT | 1 | |
| 9 | 61 35 1 459 782 | BRACKET, CONTROL UNIT | 1 | |
| 10 | 16 13 1 455 350 | HOSE - 1000MM (meter) | 1 | |
| 11 | 51 25 2 309 417 | HOLDER | 1 | |
| 12 | 51 25 2 308 491 | CLAMP | 1 |
