K100 (K589) | Seat

RADIO TELEPHONE BOX

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #52_3682 | 43 parts | 7 available in shop

100%

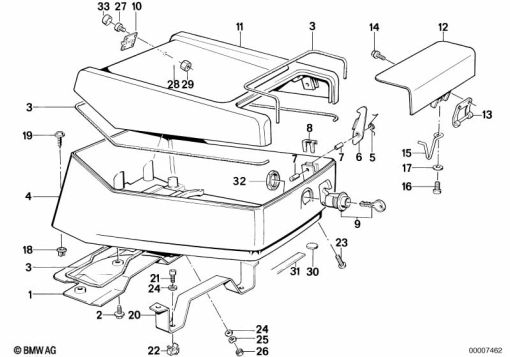

K100 (K589) RADIO TELEPHONE BOX exploded view parts diagram

Parts List (43)

#	Part Number	Description	Qty
1	65 61 2 300 283	BRACKET FRONT	1
2	46 63 1 235 512	SCREW	1
3	65 61 2 300 307	GASKET - 1230MM	1
4	65 61 2 300 319	PRIME COATED LOWER HOUSING	1
5	65 61 2 300 305	SPRING LEFT	1
5	65 61 2 300 306	SPRING RIGHT	1
6	65 61 2 300 287	HOOK - LEFT	1
6	65 61 2 300 288	HOOK - RIGHT	1
7	65 61 2 303 037	0.01	1
8	65 61 2 303 036	CLAMP	1
9	51 25 2 300 397	LOCK	1
9	51 25 2 303 289	LOCK (WITH KEY CODE)	1
10	65 61 2 300 303	HINGE	1
11	65 61 2 300 321	PRIME COATED UPPER HOUSING	1
12	65 61 2 300 323	COVER PRIMED	1
13	16 11 2 300 324	0.06	1
14	07 11 9 904 442	HEX BOLT - M5X10	1
15	65 61 2 300 285	HINGE LEFT	1
15	65 61 2 300 286	HINGE RIGHT	1
16	07 11 9 907 627	FILLISTER HEAD SCREW - M5X12-ZN	1
17	07 11 9 904 206	WASHER - 10X5,3X1-200 HV	1
17	07 11 9 936 439	WASHER - 5.3-140 HV-ZNS	1
18	52 53 1 451 393	EXPANDING NUT	1
19	07 11 9 904 176	SHEET METAL SCREW - ST4,2X19-U2-C-H	1
20	65 61 2 300 310	0.42	1
21	65 61 2 322 421	FILLISTER-HEAD SCREW - M6X25	1
22	07 12 9 904 886	CAGE NUT - M6-6-ZNS3	1
23	07 11 9 913 980	HEX BOLT - M6X30-Z3	1
24	07 11 9 904 202	WASHER - A6,4-ZNNIV SI	1
25	07 11 9 904 496	WAVE WASHER - B6-ZNS3	1
25	07 11 9 932 073	SPRING WASHER BLACK - B6-ZN	1
25	07 11 9 936 439	WASHER - 5.3-140 HV-ZNS	1
26	07 11 9 905 543	HEX NUT - M6-8-ZNNIV SI	1
27	07 11 9 900 311	FILLISTER-HEAD SCREW - M5X16-8.8-ZNS	1
28	07 11 9 932 098	WAVE WASHER - B5	1
29	07 11 9 905 710	HEX NUT - M5	1
30	46 61 1 236 899	RUBBER WASHER	1
25	07 11 9 932 0701	SS 6MM WASHER	1
25	07 11 9 932 073	BLACK SPRING WASHER	1
30	63 12 1 358 129	RUBBER WASHER	1
31	46 63 1 453 980	SEALING STRIP - 365X8X2MM	1
32	51 25 9 062 586	HEX NUT - M33X1	1
33	51 18 1 823 474	COVERING CAP - BLACK	1
