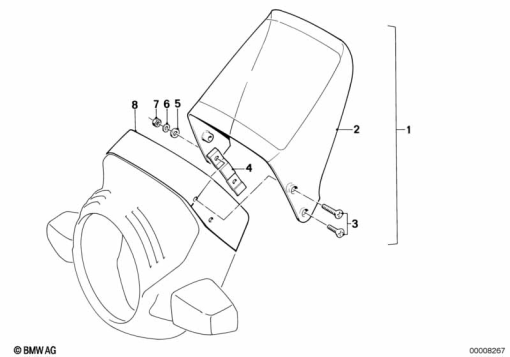

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 300 146 | SET: RETROFIT KIT, SLIPSTREAM DEFLECTOR | - | |
| 2 | 46 63 2 300 144 | SLIPSTREAM DEFLECTOR | - | |
| 3 | 07 11 9 928 503 | CSK.FILLISTER HEAD SREW - M5X30 | - | |
07 11 9 928 561 | CSK.FILLISTER HEAD SREW - M5X25Alternative for position 3 | - | ||
| 4 | 46 63 2 300 147 | PLATE | - | |
| 5 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 5 | - | ||
| 6 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 7 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | - | |
| 8 | 46 63 2 300 145 | TEMPLATE | - | |
| - | 07 11 9 905 729 | HEX NUT | - | |
| - | 07 11 9 922 035 | HEX NUT | - | |
| - | 07 11 9 922 036 | HEX NUT | - |
