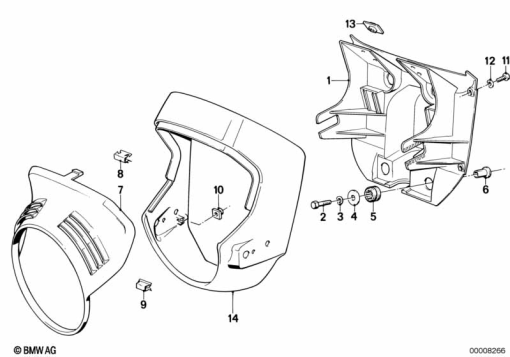

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 21 1 459 374 | REAR PANEL | - | |
| 2 | 07 11 9 904 116 | HEX BOLT - M6X30-8.8-ZNS3 | - | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 3 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
| 4 | 62 21 1 244 072 | WASHER | - | |
| 5 | 62 21 1 459 188 | RUBBER GROMMET | - | |
| 6 | 62 21 1 459 196 | BUSH | - | |
| 7 | 62 21 1 459 344 | COVER | - | |
| 8 | 62 21 1 453 274 | CLAMP | - | |
| 9 | 62 21 1 453 273 | CLAMP | - | |
| 10 | 62 21 1 459 378 | 0.01 | - | |
| 11 | 07 11 9 907 591 | OVAL-HEAD SCREW BLACK - M4X30-4.8-H-ZN | - | |
| 12 | 07 11 9 932 033 | WAVE WASHER - B4 | - | |
| 14 | 62 21 1 453 360 | COCKPIT TRIM PANEL - RED | - | |
62 21 1 453 361 | COCKPIT TRIM PANEL - POLARISAlternative for position 14 | - | ||
62 21 1 453 625 | COVERING COCKPIT PRIME COATEDAlternative for position 14 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
