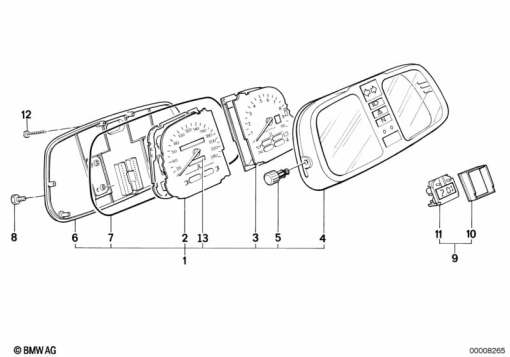

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 1 459 927 | INSTRUMENT CLUSTER - MP/H (to 04/85) | 1 | |
| 1 | 62 11 2 305 252 | INSTRUMENT CLUSTER - MP/H (from 04/85) | 1 | |
| 2 | 62 11 2 305 277 | SPEEDOMETER - MP/H (to 08/88) | 1 | |
| 3 | 62 11 2 305 263 | REVOLUTION COUNTER | 1 | |
| 4 | 62 11 1 459 919 | HOUSING - 9X | 1 | |
| – | 62 11 1 459 920 | HOUSING COVER - 9X | 1 | |
| 5 | 62 11 1 459 244 | BUTTON | 1 | |
| 6 | 62 11 1 459 920 | HOUSING COVER - 9X | 1 | |
| – | 62 11 1 459 919 | HOUSING - 9X | 1 | |
| 7 | 62 11 1 459 232 | GASKET | 1 | |
| 8 | 07 11 9 915 014 | HEX BOLT WITH WASHER - M6X12-Z3-2 | 1 | |
| 9 | 62 11 9 057 000 | SET: INSTALLING SET CLOCK | 1 | |
| 10 | 62 11 1 459 235 | FRAME | 1 | |
| 11 | 62 11 1 459 368 | CLOCK | 1 | |
| 12 | 62 11 1 459 896 | FILLISTER HEAD SELF-TAPPING SCREW - 3,5X38 MM | 1 | |
| 13 | 62 11 2 305 175 | TRIP-DISTANCE RECORDER | 1 |
