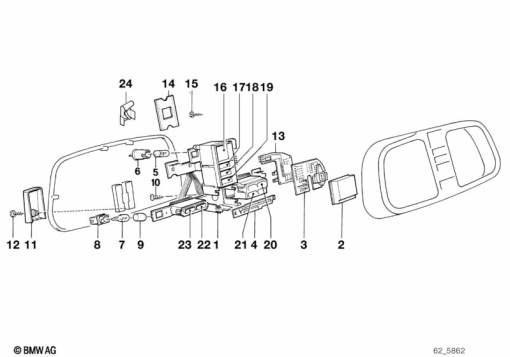

Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 1 459 902 | PRINTED CIRCUIT BOARD (to 04/85) | - | |
62 11 1 459 902 | PRINTED CIRCUIT BOARD (from 04/85)Alternative for position 1 | - | ||
| 2 | 62 11 1 459 369 | COVER | - | |
| 3 | 62 11 1 459 238 | CONDUCTOR PLATE GEAR INDICATION | - | |
| 4 | 62 11 1 459 921 | PRINTED CIRCUIT BOARD - TACHOMETER | - | |
| 5 | 07 11 9 978 256 | BULB | - | |
07 11 9 978 2561 | PARKING BULBAlternative for position 5 | - | ||
07 50 9 063 576 | BULB - 12V 4WAlternative for position 5 | - | ||
| 6 | 62 14 8 680 130 | BULB SOCKET | - | |
| 7 | 07 11 9 905 358 | BULB - W3W | - | |
07 11 9 978 372 | BULB 12 VOLT INSTRUMENTAlternative for position 7 | - | ||
| 8 | 62 11 1 356 714 | BULB SOCKET | - | |
| 9 | 07 11 9 905 358 | BULB - W3W | - | |
07 11 9 978 372 | BULB 12 VOLT INSTRUMENTAlternative for position 9 | - | ||
| 10 | 07 11 9 928 100 | COUNTERSUNK HEAD SCREW - M4X8 | - | |
| 11 | 62 11 1 459 364 | COVER | - | |
62 11 1 459 473 | COVERAlternative for position 11 | - | ||
| 12 | 07 11 9 907 720 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,9X13 | - | |
| 13 | 62 11 1 459 712 | PRINTED CIRCUIT BOARD - KRAFTST.ANZ.9X (to 04/85) | - | |
62 11 1 459 713 | PRINTED CIRCUIT BOARD - KRAFTST.ANZ.7X (to 04/85)Alternative for position 13 | - | ||
62 11 1 459 549 | PRINTED CIRCUIT BOARD - KRAFTSTOFFANZ. (from 04/85)Alternative for position 13 | - | ||
| 14 | 62 11 1 459 579 | GASKET | - | |
| 15 | 62 11 1 459 898 | SCREW - L=16MM | - | |
| 16 | 62 11 1 459 638 | CONTROL SYMBOL - GREEN | - | |
| 17 | 62 11 1 459 637 | CONTROL SYMBOL - BLUE | - | |
| 18 | 62 11 1 459 636 | CONTROL SYMBOL - RED | - | |
| 19 | 62 11 1 459 639 | CONTROL SYMBOL - GREEN | - | |
| 20 | 62 11 1 459 643 | CONTROL SYMBOL - RED | - | |
| 21 | 62 11 1 459 642 | CONTROL SYMBOL - YELLOW | - | |
| 22 | 62 11 1 459 641 | CONTROL SYMBOL - 4L (to 04/85) | - | |
62 11 1 459 643 | CONTROL SYMBOL - RED (from 04/85)Alternative for position 22 | - | ||
| 23 | 62 11 1 459 640 | CONTROL SYMBOL - 7L (to 04/85) | - | |
62 11 1 459 643 | CONTROL SYMBOL - RED (from 04/85)Alternative for position 23 | - | ||
| 24 | 62 11 1 459 487 | CONTACT SPRING | - |
