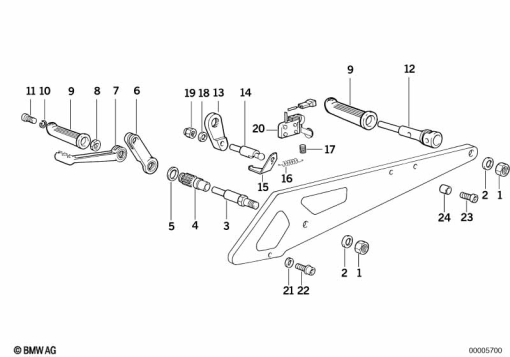

Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 906 866 | HEX NUT - M12-8-ZNS3 (from 09/85) | - | |
| 2 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (09/85 to 07/90) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3 (from 09/85)Alternative for position 2 | - | ||
| 3 | 46 51 2 315 778 | HOLDER (from 09/85) | - | |
| 4 | 46 51 2 315 775 | CONNECTOR (from 09/85) | - | |
| 5 | 46 51 2 315 776 | LOCK RING (from 09/85) | - | |
| 6 | 46 51 2 315 780 | SHIFTING FORK (from 09/85) | - | |
| 7 | 46 51 2 315 779 | LEVER (from 09/85) | - | |
| 8 | 46 51 2 315 777 | HEX NUT (from 09/85) | - | |
| 9 | 46 51 2 315 766 | FOOTREST (from 09/85) | - | |
| 10 | 07 11 9 933 082 | SPRING WASHER - B6 (from 09/85) | - | |
| 11 | 31 42 2 311 105 | FILLISTER-HEAD SCREW - M6X30-8.8-ZNS (from 09/85) | - | |
07 11 9 919 927 | SOCKET HEAD CAP SCREWAlternative for position 11 | - | ||
07 11 9 919 927.1 | FILLISTER HEAD SCREWAlternative for position 11 | - | ||
| 12 | 46 51 2 315 767 | HOLDER (from 09/85) | - | |
| 13 | 35 21 2 315 786 | COUPLING YOKE (from 09/85) | - | |
| 14 | 35 21 2 315 787 | REAR BRAKE CAM (from 09/85) | - | |
| 15 | 46 51 2 315 788 | SUPPORT (from 09/85) | - | |
| 16 | 71 60 2 315 790 | SPRING (from 09/85) | - | |
| 17 | 46 51 2 315 789 | PIN (from 09/85) | - | |
| 18 | 07 14 9 180 923 | WASHER - 8,4X18X2MM (from 09/85) | - | |
| 19 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 (from 09/85) | - | |
| 20 | 61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKE (from 09/85) | - | |
| 21 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV (from 09/85) | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (from 09/85)Alternative for position 21 | - | ||
| 22 | 07 11 9 904 303 | FILLISTER-HEAD SCREW - M5X10-8.8-ZNNIV (from 09/85) | - | |
| 23 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV (from 09/85) | - | |
| 24 | 46 51 2 315 791 | BUSH - 8MM,D=12MM (from 09/85) | - | |
| - | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | - |
