K100 (K589) | Frame, Fairing, Cases
SUPPLEMENTARY SET FOOTPEG

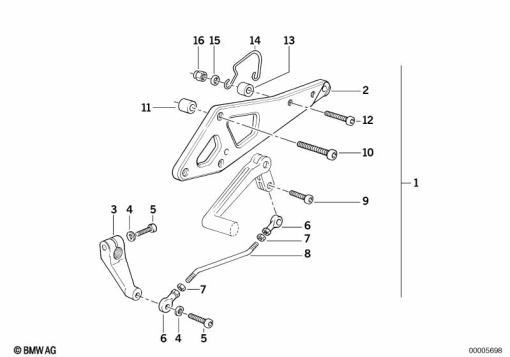

Diagram #46_0201 | 30 parts | 6 available in shop
100%
Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 315 760 | SUPPLEMENTARY SET FOOTPEG (from 09/85) | 1 | |
| – | 46 51 2 315 715 | BADGE (from 09/85) | 1 | |
| 2 | 46 51 2 315 763 | FOOTREST PLATE, LEFT (from 09/85) | 1 | |
| 2 | 46 51 2 315 764 | FOOTPEG PLATE RIGHT (from 09/85) | 1 | |
| 3 | 23 31 1 461 998 | SHIFT LEVER (from 09/85) | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (from 09/85) | 1 | |
| 4 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (from 09/85) | 1 | |
| 4 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 (from 09/85) | 1 | |
| 5 | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | 1 | |
| 5 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV (from 09/85) | 1 | |
| 6 | 46 51 2 315 782 | JOINT LINK (from 09/85) | 1 | |
| 7 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (from 09/85) | 1 | |
| 8 | 46 51 2 315 783 | SELECTOR ROD (from 09/85) | 1 | |
| 9 | 46 51 2 315 781 | COUNTERSUNK HEAD SCREW - M6X16 (from 09/85) | 1 | |
| 10 | 07 11 9 902 984 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNS3 (from 09/85) | 1 | |
| 10 | 07 11 9 919 651 | SOCKET HEAD CAP SCREW | 1 | |
| 10 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV (from 09/85) | 1 | |
| 10 | 07 11 9 919 648 | SOCKET HEAD CAP SCREW | 1 | |
| 11 | 46 51 2 315 793 | BUSH - 32MM,D=18MM (from 09/85) | 1 | |
| 11 | 46 51 2 315 794 | BUSH - 18MM,D=18MM (from 09/85) | 1 | |
| 12 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 (from 09/85) | 1 | |
| 12 | 07 12 9 903 809 | ISA SCREW - M6X40 (from 09/85) | 1 | |
| 13 | 46 51 2 315 792 | BUSH - 10MM,D=18MM (from 09/85) | 1 | |
| 14 | 46 71 2 311 822 | BOW (from 09/85) | 1 | |
| 15 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (from 09/85) | 1 | |
| 16 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 (from 09/85) | 1 | |
| 16 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (from 09/85) | 1 | |
| 16 | 07 12 9 905 817 | HEX NUT | 1 |
