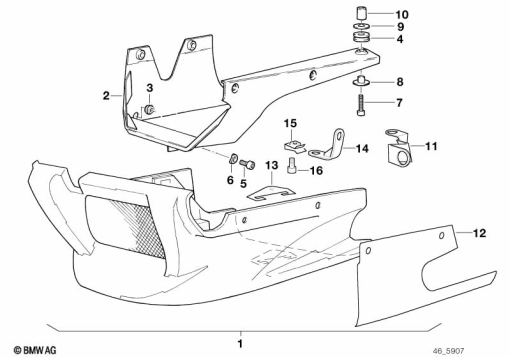

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 316 477 | SET: MOUNTING PARTS SET F ENGINE SPOILER,CAT. | - | |
| 2 | 46 63 2 315 474 | HOLDER | - | |
| 3 | 71 60 2 303 840 | GROMMET | - | |
| 4 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 5 | 07 11 9 901 023 | screw 8x1.25x16 socket head cap | - | |
07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3Alternative for position 5 | - | ||
07 11 9 904 101 | SCREWAlternative for position 5 | - | ||
| 6 | 07 11 9 931 697 | WASHER - 8,4 | - | |
07 11 9 904 826 | WasherAlternative for position 6 | - | ||
| 7 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | - | |
| 8 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 9 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | - | |
| 10 | 46 54 2 315 447 | BUSH | - | |
| 11 | 46 63 2 316 445 | HOLDER | - | |
| 12 | 46 63 2 316 444 | TEMPLATE | - | |
| 13 | 46 63 2 316 456 | TEMPLATE | - | |
| 14 | 34 52 1 458 015 | SUPPORT LEFT | - | |
| 16 | 18 22 1 464 332 | FILLISTER HEAD SCREW | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
