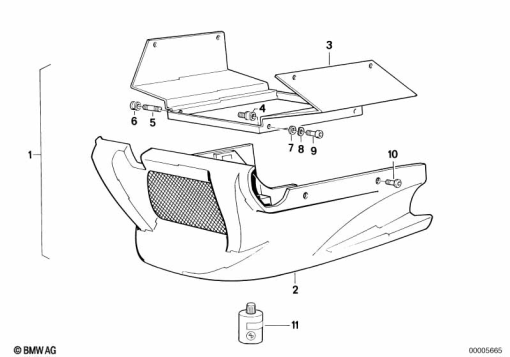

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 303 627 | SET: SUPPLEMENTARY SET MOTOR SPOILER | 1 | |
| 2 | 46 63 2 303 625 | ENGINE SPOILER | 1 | |
| 3 | 46 63 2 303 626 | HOLDER | 1 | |
| 4 | 71 60 2 303 838 | RUBBER MOUNTING | 1 | |
| 5 | 71 60 2 303 845 | THREADED BOLT - M8X32 | 1 | |
| 6 | 71 60 2 303 840 | GROMMET | 1 | |
| 7 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 8 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 8 | 07 11 9 932 095.1 | M8 SPRING WASHER B8 V2A | 1 | |
| 9 | 07 11 9 918 849 | FILLISTER-HEAD SCREW - M8X10 | 1 | |
| 10 | 71 60 2 303 846 | FILLISTER HEAD SCREW - M8X16 | 1 | |
| 11 | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | 1 |
