K100 (K589) | Frame, Fairing, Cases
MODIFICATION KIT F SAFETY BAR, CATALYST

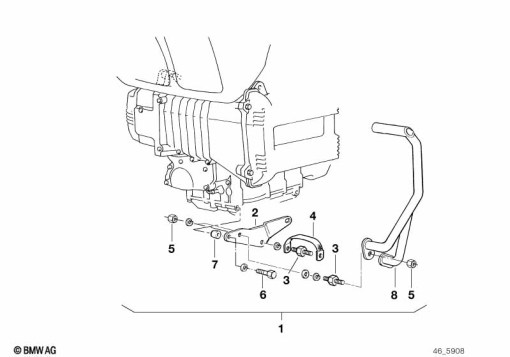

Diagram #46_0310 | 7 parts
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 316 572 | SET: MODIFICATION KIT F SAFETY BAR, CATALYST - CHROME | - | |
| 2 | 46 71 2 315 668 | BRACKET | - | |
| 3 | 46 71 8 554 872 | RUBBER MOUNTING | - | |
| 4 | 65 31 1 459 559 | EARTH STRAP | - | |
| 5 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 7 | 46 71 2 315 671 | SPACER BUSH | - | |
| 8 | 46 71 2 315 561 | LEFT ENGINE PROTECTION BAR - CHROME | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
