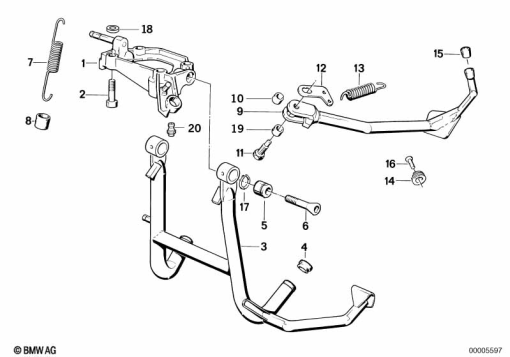

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 2 311 150 | SUPPORTING BRACKET (to 03/91) | 1 | |
| 1 | 46 53 2 310 471 | BUSHING (to 03/91) | 1 | |
| 1 | 46 53 2 310 473 | BUSHING - 16X10,2X12,2 (to 03/91) | 1 | |
| 1 | 46 53 2 312 278 | HEX BOLT - M10X50-8.8 (to 03/91) | 1 | |
| 2 | 46 52 1 450 717 | FILLISTER-HEAD SCREW - M10X40 | 1 | |
| 3 | 46 52 2 310 475 | CENTER STAND (from 05/84) | 1 | |
| 4 | 46 52 1 236 522 | 28.66 | 1 | |
| 5 | 46 52 1 454 038 | SLEEVE - 24MM (from 05/84) | 1 | |
| 6 | 46 52 1 454 158 | COUNTERSUNK HEAD SCREW - M10X50-8.8 (from 05/84) | 1 | |
| 7 | 46 52 1 450 075 | TENSION SPRING | 1 | |
| 8 | 46 52 1 237 786 | RUBBER GROMMET | 1 | |
| 9 | 46 53 1 451 973 | SIDE STAND | 1 | |
| 11 | 46 53 2 312 278 | HEX BOLT - M10X50-8.8 (to 03/91) | 1 | |
| 1 | 46 53 2 310 471 | BUSHING (to 03/91) | 1 | |
| 1 | 46 53 2 310 473 | BUSHING - 16X10,2X12,2 (to 03/91) | 1 | |
| 13 | 46 53 1 450 989 | TENSION SPRING | 1 | |
| 14 | 46 53 1 454 145 | BUMP STOP | 1 | |
| 15 | 46 53 2 312 966 | 0.02 | 1 | |
| 16 | 07 12 9 948 747 | BLIND RIVET - 3,2 2A | 1 | |
| 17 | 07 11 9 934 132 | LOCK RING - 20X1,2 | 1 | |
| 18 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | 1 |
