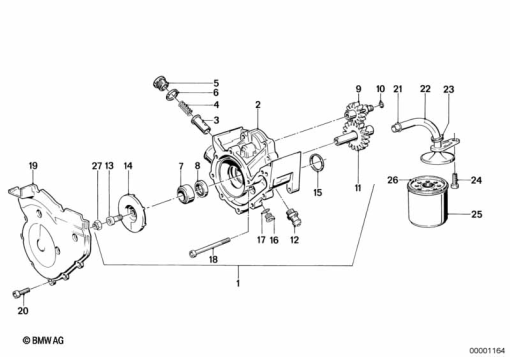

Parts List (32)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 7 676 366 | PUMP UNIT | - | |
| 2 | 11 51 1 464 900 | WATERPUMP HOUSING (to 01/90) | - | |
| 3 | 11 41 1 460 258 | PISTON | - | |
| 4 | 11 41 1 460 259 | COMPRESSION SPRING | - | |
| 5 | 11 41 1 460 483 | SCREW PLUG | - | |
| 6 | 07 11 9 963 342 | GASKET RING - A20X24-CU | - | |
| 7 | 11 41 1 741 870 | SLIP-RING SEAL | - | |
| - | 11 51 1 464 902 | SPACER BUSH | - | |
| - | 11 41 1 461 173 | ROTOR | - | |
| 8 | 11 41 1 460 329 | SHAFT SEAL - 12X25X5 | - | |
| 9 | 11 41 1 460 282 | DRIVE SHAFT (to 01/90) | - | |
| 10 | 11 41 1 460 328 | O-RING - 7-2 | - | |
| 11 | 11 41 1 461 793 | SHAFT - Z=19 (to 01/90) | - | |
| - | 12 31 1 460 853 | SCREW - M8X22 (to 01/90) | - | |
| 12 | 12 61 1 277 642 | OIL PRESSURE SWITCH - M12X1,5 | - | |
| 13 | 12 31 1 460 853 | SCREW - M8X22 | - | |
| 14 | 11 51 1 460 024 | ROTOR | - | |
| 15 | 11 11 1 460 392 | O-RING - 27,3X2,4 | - | |
| 16 | 07 11 9 904 393 | SCREW PLUG - M10X1-ST-ZNS3 | - | |
| 17 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 18 | 07 11 9 904 509 | FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 | - | |
| 19 | 11 51 1 460 257 | PUMP COVER | - | |
| 20 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 21 | 11 41 1 460 403 | O-RING - 13,3X2,4 | - | |
| 22 | 11 41 1 460 597 | OIL PUMP STRAINER | - | |
| 23 | 11 41 1 460 315 | RUBBER GROMMET | - | |
| 24 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| - | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | - | |
| 25 | 11 42 1 460 845 | OIL FILTER | - | |
| 26 | 11 42 1 461 534 | GASKET RING | - | |
| 27 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| - | 11 00 2 300 053 | REPAIR KIT FOR OIL CHANGE | - |
