K100 (K589) | Engine

TIMING CASE COVER

Diagram #11_4679 | 11 parts

100%

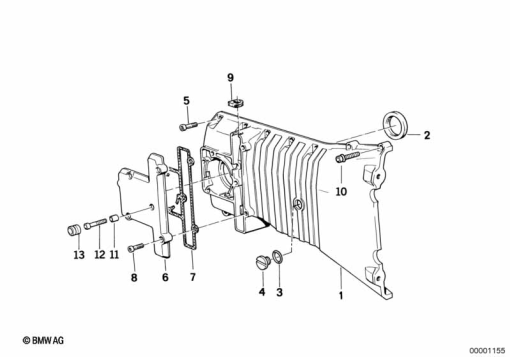

K100 (K589) TIMING CASE COVER exploded view parts diagram

Parts List (11)

#Part NumberDescriptionQty
1
11 14 1 460 273
TIMING CASE COVER-
11 14 2 322 282
TIMING CASE COVERAlternative for position 1-
11 14 1 461 423
SCREW PLUG - M20X1,5Alternative for position 1-
07 11 9 963 342
GASKET RING - A20X24-CUAlternative for position 1-
2
11 14 7 654 531
SHAFT SEAL - 36X52X7-
5
11 14 1 460 678
FILLISTER-HEAD SCREW - M6X25-
6
11 14 1 460 275
COVER-
7
11 14 1 460 307
GASKET-
8
11 13 1 460 677
MULTI-PURPOSE BOLT - M6X20-Z3-ZNS-
9
61 13 1 459 072
GROMMET-
10
07 11 9 906 058
FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
