K100 (K589) | Engine

CRANK CASE COVER

Diagram #11_4678 | 6 parts

100%

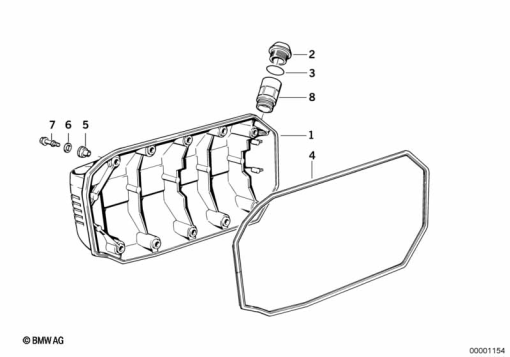

K100 (K589) CRANK CASE COVER exploded view parts diagram

Parts List (6)

#Part NumberDescriptionQty
1
11 14 1 460 265
CRANK CASE COVER-
2
11 14 1 460 191
SCREW PLUG-
3
11 14 1 460 674
O-RING - 25X2,7-
4
11 14 1 460 466
GASKET-
5
11 14 1 460 934
BUSH-
7
11 14 1 460 331
SCREW-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
