K100 (K589) | Engine
INTERMEDIATE HOUSING/ALTERNATOR COVER

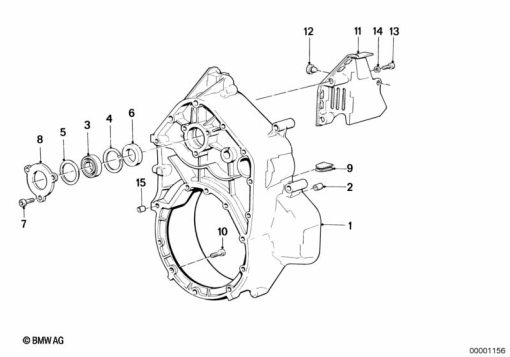

Diagram #11_4680 | 16 parts | 2 available in shop
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 2 323 113 | SILVER BOTTOM HOUSING | 1 | |
| 2 | 11 14 1 460 790 | DOWEL - D11,5MM / L13MM | 1 | |
| 3 | 11 14 1 460 807 | GROOVED BALL BEARING - 20X42X12 | 1 | |
| 4 | 07 11 9 905 077 | LOCK RING - 42X1,75 | 1 | |
| 5 | 11 14 1 460 890 | DIAPHRAGM SPRING | 1 | |
| 6 | 11 14 1 461 185 | SHAFT SEAL - 26X42X5,5/7 | 1 | |
| 7 | 07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIV | 1 | |
| 8 | 11 14 1 460 728 | INTERMEDIATE PLATE | 1 | |
| 9 | 11 14 1 460 478 | PADDING | 1 | |
| 10 | 11 14 1 460 752 | SCREW - M6X25 | 1 | |
| 11 | 11 14 1 464 637 | ALTERNATOR COVER | 1 | |
| 12 | 11 14 1 460 487 | BUMP STOP | 1 | |
| 13 | 07 11 9 919 905 | FILLISTER HEAD WITH WASHER - M5X12 | 1 | |
| 14 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 14 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 15 | 11 12 1 726 242 | DOWEL - D=8,5X9MM | 1 |
