K100 (K589) | Engine

OUTPUT SHAFT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #11_4681 | 33 parts

100%

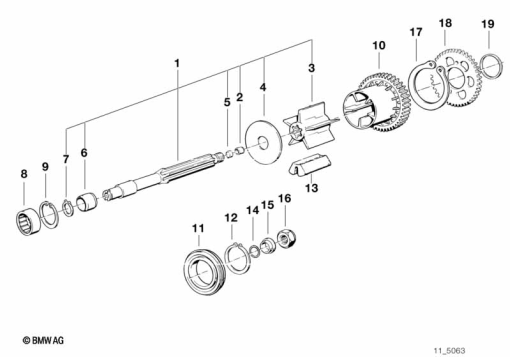

K100 (K589) OUTPUT SHAFT exploded view parts diagram

Parts List (33)

#	Part Number	Description	Qty
1	11 21 1 461 785	OUTPUT SHAFT	-
	11 21 1 461 498	IDLERAlternative for position 1	-
	11 21 1 461 499	ABSORBER GEAR WHEELAlternative for position 1	-
5	11 21 1 461 541	ABSORBER	-
-	11 21 1 464 519	SPRING	-
-	11 21 1 461 539	BUSH - 6X12X12	-
-	11 21 1 460 883	ABSORBER	-
-	11 21 1 460 356	BRACKET	-
5	07 11 9 906 393	COVER LID - D=12MM	-
6	11 21 1 460 370	INNER BEARING RING - 22X26X2,0	-
7	11 21 1 460 373	SNAP RING - D=22MM	-
8	11 21 1 460 376	NEEDLE BEARING - 26X34X16	-
9	11 21 1 460 379	SNAP RING - D=34MM	-
10	11 21 1 461 499	ABSORBER GEAR WHEEL	-
-	11 21 1 461 498	IDLER	-
-	11 21 1 461 541	ABSORBER	-
-	11 21 1 464 519	SPRING	-
11	11 21 1 465 278	GROOVED BALL BEARING - 50X80X16	-
	11 21 1 460 472	GROOVED BALL BEARING - 50X80X16 (to 12/85)Alternative for position 11	-
12	07 11 9 934 250	LOCK RING - 50X2 (to 12/85)	-
	11 21 1 461 755	LOCK RING (from 12/85)Alternative for position 12	-
13	11 21 1 461 541	ABSORBER	-
	11 21 1 460 231	ABSORBERAlternative for position 13	-
-	11 21 1 460 903	ABSORBER GEAR WHEEL	-
14	11 21 1 460 467	O-RING - 19X4	-
15	11 21 1 460 696	COMPRESSION RING	-
16	11 21 1 460 673	HEX NUT - M20X1,5	-
17	11 21 1 461 532	SPRING (to 08/89)	-
18	11 21 1 461 753	IDLER (to 08/89)	-
19	11 21 1 461 742	SHIM - 1,60MM (to 08/89)	-
	11 21 1 461 743	SHIM - 1,75MM (to 08/89)Alternative for position 19	-
	11 21 1 461 744	SHIM - 1.90MM (to 08/89)Alternative for position 19	-
	11 21 1 461 745	SHIM - 2,05MM (to 08/89)Alternative for position 19	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
