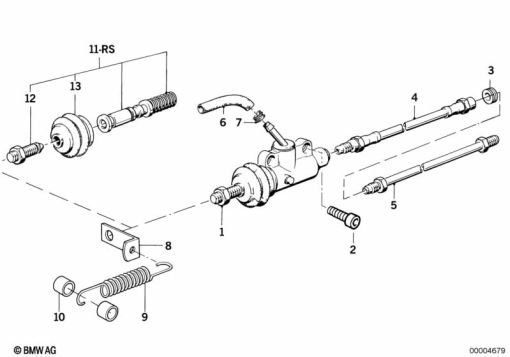

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 1 454 351 | BRAKE MASTER CYLINDER - D=13MM MAGURA (to 10/88) | - | |
| 2 | 34 31 1 451 985 | FILLISTER-HEAD SCREW - M6X16 | - | |
| 3 | 34 32 2 302 310 | GROMMET | - | |
34 32 2 310 917 | GROMMETAlternative for position 3 | - | ||
| 4 | 34 32 2 310 962 | BRAKE HOSE - L=370MM (from 12/91) | - | |
| 5 | 34 21 1 450 775 | BRAKE PIPE (to 12/91) | - | |
| 6 | 34 32 1 451 888 | HOSE - L=220MM (to 09/87) | - | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 8 | 35 21 1 454 375 | SUPPORT | - | |
| 9 | 35 21 1 457 049 | TENSION SPRING | - | |
| 10 | 35 21 1 454 377 | BUSH | - | |
| 11 | 34 31 1 454 438 | SET: REPAIR KIT BRAKE MASTER CYLINDER - D=13MM MAGURA (to 10/88) | - | |
| 12 | 34 31 1 451 885 | ADJUSTER - MAGURA | - | |
| 13 | 34 31 1 454 435 | RUBBER BOOT - MAGURA | - |
