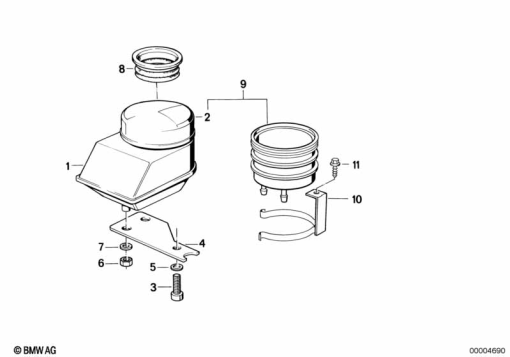

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 1 451 863 | FLUID RESERVOIR, SQUARE CORNERS (to 09/87) | 1 | |
| 2 | 34 31 1 457 870 | COVER (to 09/87) | 1 | |
| 3 | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | 1 | |
| 3 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV (to 09/87) | 1 | |
| 4 | 34 31 1 451 978 | HOLDER (to 09/87) | 1 | |
| 5 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 (to 09/87) | 1 | |
| 6 | 07 11 9 905 710 | HEX NUT - M5 (to 09/87) | 1 | |
| 7 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (to 09/87) | 1 | |
| 8 | 34 31 1 457 603 | RUBBER COVER | 1 |
