Parts List (18)

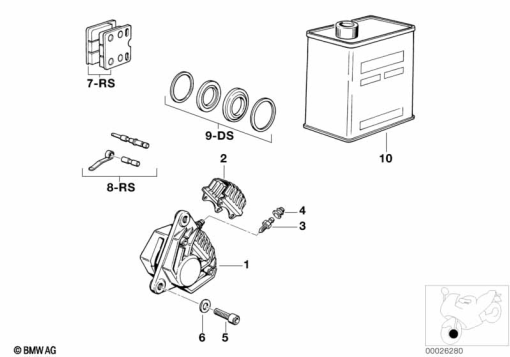

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 7 723 307 | BRAKE CALIPER WITHOUT PAD - D=38MM (to 09/88) | - | |
34 11 1 465 276 | BRAKE CALIPER WITHOUT PAD - D=38 (to 09/88)Alternative for position 1 | - | ||
| 2 | 34 11 1 454 120 | COVERING CAP - BREMBO | - | |
34 11 1 454 653 | COVERING CAP - 20 3254.32Alternative for position 2 | - | ||
| 3 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 4 | 34 21 1 236 794 | DUST CAP | - | |
| 5 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS | - | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 34 21 7 657 025 | SET: BRAKE PADS KIT (to 09/88) | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 7 | - | ||
34 11 2 331 175 | SET: BRAKE PADS KIT (from 09/88)Alternative for position 7 | - | ||
| 8 | 34 11 1 454 005 | SET: SET MOUNTING PARTS | - | |
| 9 | 34 11 2 310 493 | SET: REPAIR SET BRAKE CALIPER | - | |
| 10 | 83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 12/96) | - | |
| - | 34 21 7 657 025 | BRAKE PADS KIT | - | |
| 10 | 83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L | - | |
83 13 2 467 961 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 12/96)Alternative for position 10 | - | ||
83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250MLAlternative for position 10 | - |
