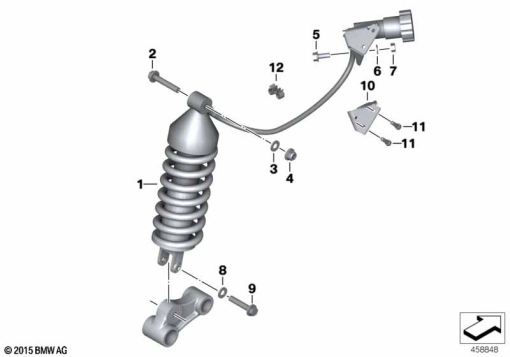

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 7 728 374 | SPRING STRUT, REAR | - | |
31 42 7 728 375 | STRUT, LOW, REARAlternative for position 1 | - | ||
| 2 | 33 53 2 332 253 | HEX BOLT - M10X1.25X55-10. | - | |
| 3 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 4 | 07 12 9 964 677 | SELF-LOCKING HEX NUT - M10X1,25 | - | |
| 5 | 07 11 9 904 401 | HEX BOLT - M8X20-8.8ZNS3 | - | |
| 6 | 07 11 9 907 030 | WASHER - 8,4X16X1,6-ZNNV | - | |
| 7 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 8 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 9 | 33 54 8 523 427 | HEXAGON SCREW WITH FLANGE - M10X1,25X48 | - | |
| 10 | 31 42 8 521 229 | BRACKET, ADJUSTING WHEEL | - | |
| 11 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 12 | 33 53 8 527 613 | HOSE BRACKET, ROTATING | - |
