G650GS 10-15 (R131) | Rear Axle & Suspension

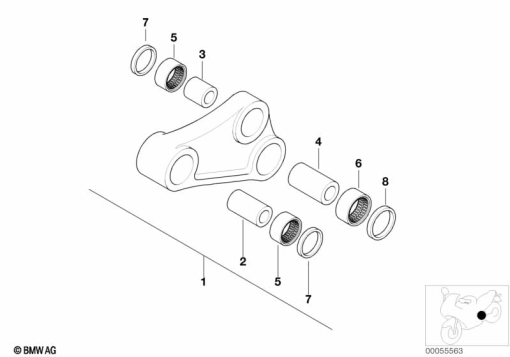

REAR SWING ARM LINKAGE COMPONENTS
Diagram #33_1049 | 8 parts
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 7 655 876 | DEFLECTION LEVER | 1 | |
| 2 | 33 53 7 650 101 | BUSHING - 43X18X10,1 | 1 | |
| 3 | 33 53 7 650 099 | BUSHING - L=25MM | 1 | |
| 4 | 33 53 7 650 098 | BUSHING - L=51MM | 1 | |
| 5 | 33 53 7 650 094 | NEEDLE SLEEVE - 18X24X16 | 1 | |
| 6 | 33 53 7 650 093 | NEEDLE SLEEVE - 22X28X16 | 1 | |
| 7 | 33 53 7 650 096 | GASKET RING - D=18X24X3 | 1 | |
| 8 | 33 53 7 650 097 | GASKET RING - D=22X28X4 | 1 |
