G650GS 10-15 (R131) | Rear Axle & Suspension

REAR WHEEL SWINGING ARM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_1045 | 18 parts

100%

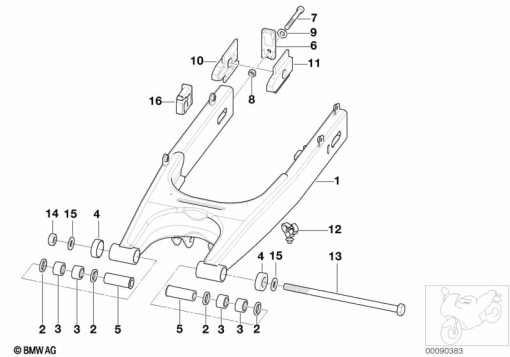

G650GS 10-15 (R131) REAR WHEEL SWINGING ARM exploded view parts diagram

Parts List (18)

#	Part Number	Description	Qty
1	33 17 8 526 951	REAR WHEEL SWINGING ARM, BLACK	-
2	33 17 7 650 203	GASKET RING	-
3	33 53 7 650 093	NEEDLE SLEEVE - 22X28X16	-
4	33 17 7 654 293	STOP DISK	-
5	33 17 7 650 205	BUSHING	-
6	33 17 8 529 236	SUPPORTING PLATE - BLACK	-
7	07 12 9 903 811	ISA SCREW - M8X70	-
8	07 12 9 906 196	SELF-LOCKING HEX NUT - M8-8-ZNNI SI	-
9	07 11 9 907 030	WASHER - 8,4X16X1,6-ZNNV	-
10	33 17 7 107 931	CHAIN TENSIONER	-
	33 17 7 107 931	CHAIN TENSIONERAlternative for position 10	-
-	33 17 7 650 079	PLATE LEFT	-
11	33 17 7 107 931	CHAIN TENSIONER	-
	33 17 7 107 931	CHAIN TENSIONERAlternative for position 11	-
-	33 17 7 650 080	PLATE RIGHT	-
13	33 17 7 650 588	AXLE SHAFT, SWING PART	-
14	07 12 9 906 047	SELF-LOCKING HEX NUT - M14X1,5-8-ZNS3	-
15	07 11 9 905 829	WASHER - A15 ZNS3	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
