G650GS 10-15 (R131) | Rear Axle & Suspension

REAR SWING ARM RADIUS ROD

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_1050 | 3 parts

100%

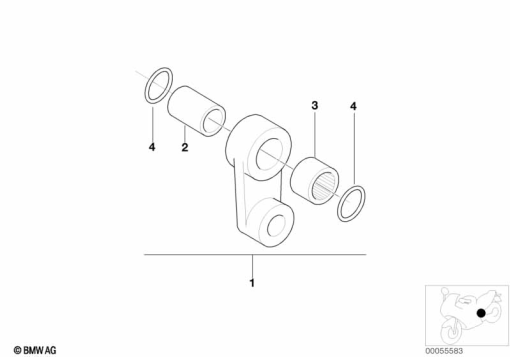

G650GS 10-15 (R131) REAR SWING ARM RADIUS ROD exploded view parts diagram

Parts List (3)

#	Part Number	Description	Qty
1	33 53 7 655 877	TENSION STRUT	-
3	33 53 7 650 095	NEEDLE SLEEVE - 18X24X12	-
4	33 53 7 650 096	GASKET RING - D=18X24X3	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
