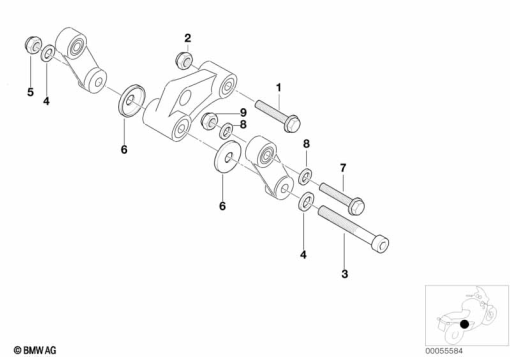

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 330 374 | HEX BOLT - M10X1,25X65 | 1 | |
| 2 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | 1 | |
| 3 | 07 11 9 906 860 | HEX BOLT - M12X110 | 1 | |
| 4 | 07 11 9 904 119 | WASHER - 12-300 HV-ZNS3 | 1 | |
| 5 | 07 12 9 906 866 | HEX NUT - M12-8-ZNS3 | 1 | |
| 6 | 33 53 7 655 595 | COVERING PLATE | 1 | |
| 7 | 33 54 8 523 427 | HEXAGON SCREW WITH FLANGE - M10X1,25X48 | 1 | |
| 8 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 9 | 07 12 9 964 677 | SELF-LOCKING HEX NUT - M10X1,25 | 1 |
