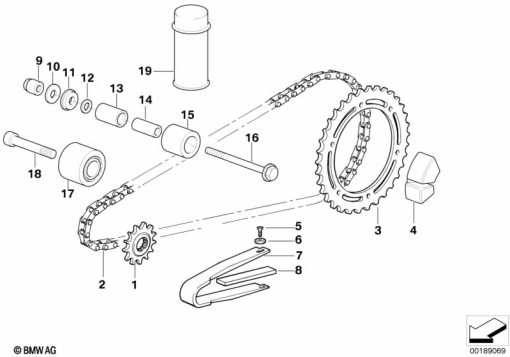

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23005B3EE58 | CHAIN PINION | - | |
27 71 7 700 154 | CHAIN PINION - 16 Z (to 12/15)Alternative for position 1 | - | ||
23005B3EE58 | CHAIN PINION - 16 ZAlternative for position 1 | - | ||
| 2 | 27 72 7 682 439 | CHAIN - 112 | - | |
| 3 | 27 71 2 345 857 | CHAIN PINION - Z=47 | - | |
| 4 | 27 71 2 345 789 | ABSORBER | - | |
| 18 | 07 12 9 906 213 | ISA SCREW - M10X55-10.9-MK | - | |
| 19 | 83105A6D0B5 | CHAIN SPRAY - 300ML (to 12/15) | - | |
83105B311D4 | CHAIN SPRAY - 300MLAlternative for position 19 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
