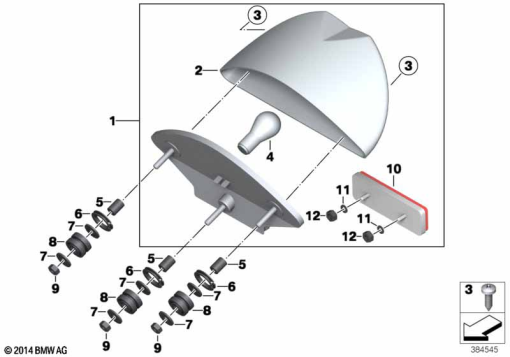

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 21 7 670 324 | REAR LIGHT | - | |
| 2 | 63 21 7 670 325 | LAMP LENS | - | |
| 3 | 63 21 7 654 407 | COUNTERSUNK HEAD SCREW - 3,9X25 | - | |
| 4 | 07 11 9 905 511 | LONGLIFE BULB - 12V 21/5W | - | |
| 5 | 63 21 2 346 564 | BUSH | - | |
| 7 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 9 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 10 | 63 21 2 346 581 | REAR REFLECTOR RED | - | |
| 11 | 07 11 9 904 924 | WASHER - 9X4,3X0,8-A2 | - | |
| 12 | 07 12 9 906 098 | HEX NUT - M4-A2-70 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
