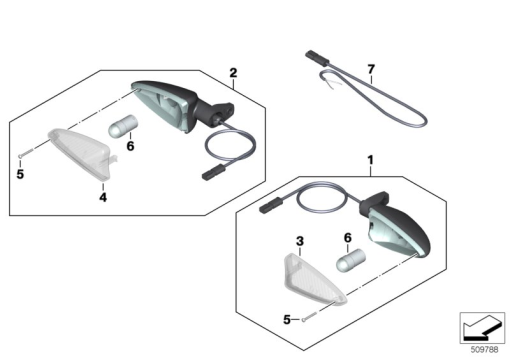

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 7 723 437 | TURN SIGNAL LAMP, WHITE (to 10/12) | - | |
63 13 8 534 359 | TURN SIGNAL LAMP, WHITE (from 10/12)Alternative for position 1 | - | ||
| 2 | 63 13 7 723 438 | TURN SIGNAL LAMP, WHITE (to 10/12) | - | |
63 13 8 534 358 | TURN SIGNAL LAMP, WHITE (from 10/12)Alternative for position 2 | - | ||
| 3 | 63 13 7 715 771 | HEADLIGHT LENS, WHITE (to 10/12) | - | |
63 13 8 534 351 | LAMP LENS (from 10/12)Alternative for position 3 | - | ||
| 4 | 63 13 7 715 772 | HEADLIGHT LENS, WHITE (to 10/12) | - | |
63 13 8 534 350 | LAMP LENS (from 10/12)Alternative for position 4 | - | ||
| 5 | 63 13 7 722 372 | SCREW - 2,2X18 A2 | - | |
| 6 | 63 21 7 169 203 | BULB - 10W RY10W | - | |
| 7 | 61 12 7 699 594 | CONNECTION CABLE - L=330MM | - |
