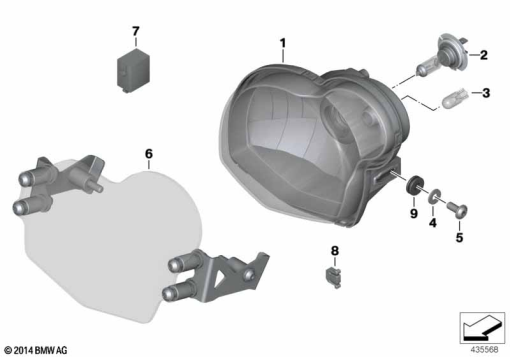

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 7 696 880 | HEADLIGHT | - | |
| 2 | 63 21 7 162 953 | LONGLIFE BULB - H4 | - | |
| 3 | 63 21 7 160 797 | LONGLIFE BULB - 5W | - | |
| 4 | 13 71 2 345 031 | BUSH | - | |
| 5 | 06 32 7 651 204 | FILLISTER HEAD SCREW - M6X16-A2-80 | - | |
| 7 | 61 13 7 707 940 | RELAY | - | |
| - | 61 13 7 707 942 | RELAY BRACKET | - | |
| 8 | 63 21 7 696 887 | SPRING | - | |
| 9 | 13 71 2 345 030 | RUBBER GROMMET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
