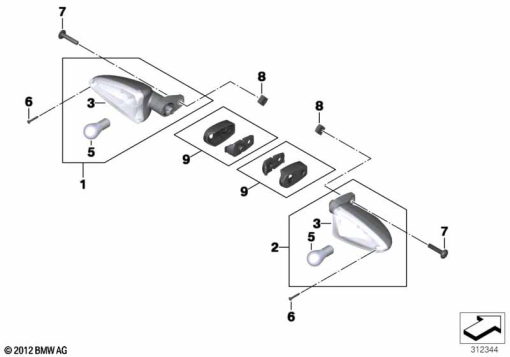

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 23 7 720 564 | TURN SIGNAL LAMP, WHITE (to 10/12) | - | |
63 23 8 534 360 | TURN SIGNAL LAMP, WHITE (from 10/12)Alternative for position 1 | - | ||
| 2 | 63 23 7 720 563 | TURN SIGNAL LAMP, WHITE (to 10/12) | - | |
63 23 8 534 361 | TURN SIGNAL LAMP, WHITE (from 10/12)Alternative for position 2 | - | ||
| 3 | 63 13 7 715 772 | HEADLIGHT LENS, WHITE (to 10/12) | - | |
63 13 8 534 350 | LAMP LENS (from 10/12)Alternative for position 3 | - | ||
| 4 | 63 13 7 715 771 | HEADLIGHT LENS, WHITE (to 10/12) | - | |
63 13 8 534 351 | LAMP LENS (from 10/12)Alternative for position 4 | - | ||
| 5 | 63 21 7 169 203 | BULB - 10W RY10W (to 10/12) | - | |
63 21 7 169 203 | BULB - 10W RY10W (from 10/12)Alternative for position 5 | - | ||
| 6 | 63 13 7 722 372 | SCREW - 2,2X18 A2 (to 10/12) | - | |
63 13 7 722 372 | SCREW - 2,2X18 A2 (from 10/12)Alternative for position 6 | - | ||
| 7 | 46 54 7 705 577 | OVAL HEAD SCREW - M6X35 MK (to 10/12) | - | |
46 54 7 705 577 | OVAL HEAD SCREW - M6X35 MK (from 10/12)Alternative for position 7 | - | ||
| 9 | 63 23 7 723 439 | ADAPTER FOR TURN SIGNAL MOUNT (to 10/12) | - | |
63 23 7 723 439 | ADAPTER FOR TURN SIGNAL MOUNT (from 10/12)Alternative for position 9 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
