G650GS 10-15 (R131) | Frame, Fairing, Cases
WHEEL COVER,REAR, LICENSE PLATE FRAME

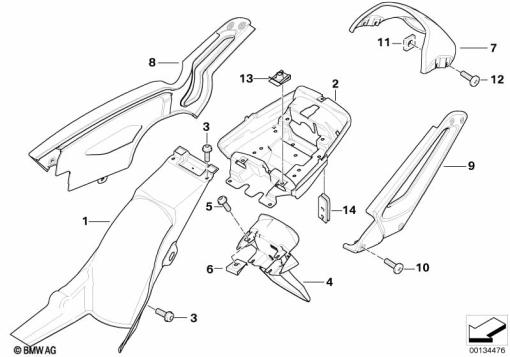

Diagram #46_0859 | 14 parts
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 350 070 | WHEEL COVER, FRONT SECTION, BLACK, REAR | 1 | |
| 2 | 46 62 7 678 906 | WHEEL COVER, REAR SECTION, REAR | 1 | |
| 3 | 07 12 9 902 771 | FILLISTER-HEAD SCREW - M6X16-Z2 | 1 | |
| 4 | 46 62 7 680 450 | LICENSE PLATE HOLDER | 1 | |
| 5 | 07 12 9 903 468 | TORX BOLT - M5X16 8.8 MK | 1 | |
| 6 | 61 13 1 372 033 | BODY NUT - M5 | 1 | |
| 7 | 46 62 2 346 386 | WHEEL COVER - BLACK | 1 | |
| 8 | 46 62 7 651 446 | BRACKET, WHEEL COVER, BOTTOM RIGHT - BLACK | 1 | |
| 9 | 46 62 7 672 364 | BRACKET, WHEEL COVER, BOTTOM LEFT - BLACK | 1 | |
| 10 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | 1 | |
| 11 | 46 63 7 651 465 | PLUG-IN NUT - M5 | 1 | |
| 12 | 06 32 7 657 949 | FILLISTER HEAD SCREW - M5X16-A2-80-MK | 1 | |
| 13 | 46 63 7 658 638 | FLAT NUT - M5 | 1 | |
| 14 | 46 54 7 651 033 | GROMMET - LEFT | 1 |
