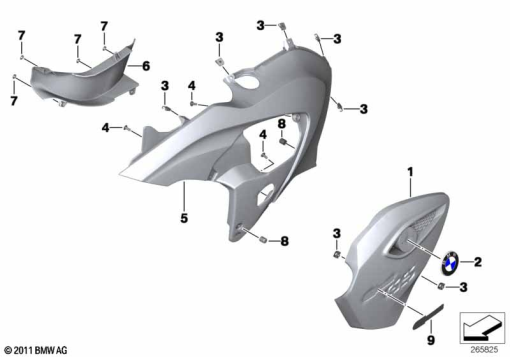

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 727 167 | PLAQUE HOLDER, LEFT | - | |
46 63 7 727 168 | PLAQUE HOLDER, RIGHTAlternative for position 1 | - | ||
| - | 46 63 8 520 628 | BUMP STOP | - | |
| 2 | 51 14 8 164 924 | BADGE - D=58MM | - | |
| - | 46 63 8 564 491 | ADHESIVE PAD | - | |
| 3 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 4 | 46 63 7 657 650 | FILLISTER HEAD SCREW - M5X14 | - | |
| 5 | 46 63 8 522 555 | LATERAL TRIM PANEL, LEFT - RED-ORANGE | - | |
46 63 8 522 556 | LATERAL TRIM PANEL, RIGHT - RED-ORANGEAlternative for position 5 | - | ||
46 63 7 727 209 | LATERAL TRIM PANEL, LEFT - AURA-WHITEAlternative for position 5 | - | ||
46 63 7 727 210 | LATERAL TRIM PANEL, RIGHT - AURA-WHITEAlternative for position 5 | - | ||
| 6 | 46 63 7 727 153 | LEFT AIR DUCT | - | |
| 7 | 51 41 8 144 600 | CIRCLIP - D=4MM | - | |
| 8 | 46 63 7 650 963 | BUMP STOP | - | |
| 9 | 46 63 8 536 237 | EMBLEM IN YELLOW-WHITE | - | |
46 63 8 530 966 | LABEL, BLUE-WHITEAlternative for position 9 | - | ||
46 63 8 550 059 | LABEL, GRAY-BLACKAlternative for position 9 | - | ||
46 63 7 727 152 | LABEL, RED-WHITEAlternative for position 9 | - |
