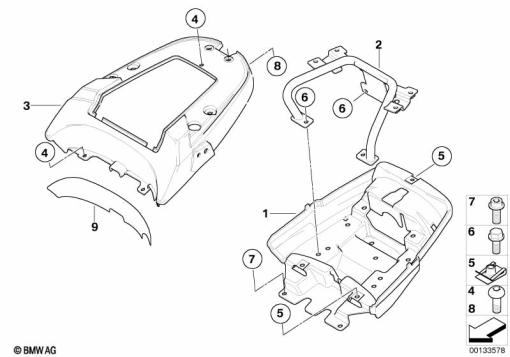

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 7 678 906 | WHEEL COVER, REAR SECTION, REAR | - | |
| 2 | 46 54 7 678 905 | TUBULAR FRAME | - | |
| 3 | 46 54 7 678 917 | TAIL PART UPPER - SILVER | - | |
46 54 8 527 523 | TAIL PART UPPER - BLACKAlternative for position 3 | - | ||
| 4 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 5 | 46 63 7 658 638 | FLAT NUT - M5 | - | |
| 6 | 07 12 9 905 516 | TORX-BOLT WITH WASHER - M6X20-U1-8.8 | - | |
| 7 | 07 12 9 902 771 | FILLISTER-HEAD SCREW - M6X16-Z2 | - | |
| 9 | 46 54 7 656 908 | ADHESIVE FILM F TAIL TRIM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
