G650GS 10-15 (R131) | Frame, Fairing, Cases

TUBE FOR TRIM COVER HOLDER

Diagram #46_1349 | 4 parts

100%

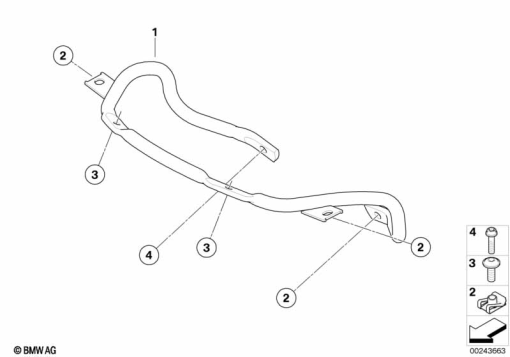

G650GS 10-15 (R131) TUBE FOR TRIM COVER HOLDER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 7 727 159
TUBE FOR TRIM COVER HOLDER1
2
46 63 7 721 031
FLAT NUT - M51
3
71 60 7 654 904
FILLISTER HEAD SCREW - M5X181
4
07 12 9 905 537
ISA SCREW WITH WASHER - M6X30-U0-8.81
