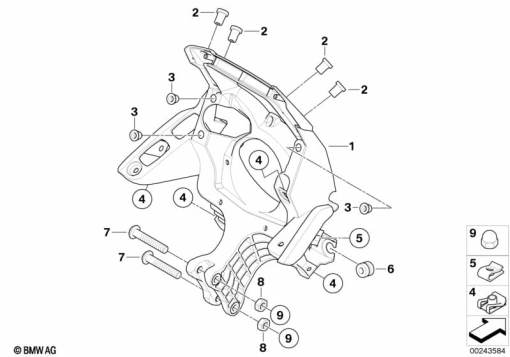

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 727 109 | FAIRING BRACKET | - | |
| 2 | 46 63 2 347 012 | BLIND RIVET NUT, FLAT HEADED - M5 | - | |
| 3 | 46 63 7 691 016 | SNAP-LOCK COUPLING | - | |
| 4 | 46 63 7 721 031 | FLAT NUT - M5 | - | |
| 5 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 6 | 46 63 1 453 144 | RUBBER GROMMET | - | |
| 7 | 35 21 7 654 249 | OVAL-HEAD MACHINE SCREW, BLACK - M8X55 | - | |
| 8 | 07 11 9 904 024 | HEX NUT - M8-ZNS3 | - | |
| 9 | 46 51 1 234 785 | PROTECTION CAP - M8 | - |
