G650GS 10-15 (R131) | Frame, Fairing, Cases

TRIM PANEL UPPER PART

Diagram #46_1350 | 3 parts

100%

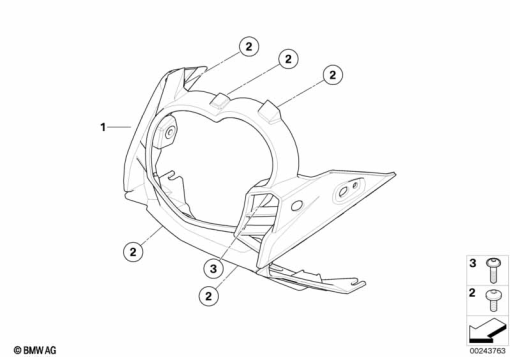

G650GS 10-15 (R131) TRIM PANEL UPPER PART exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 7 727 111
TRIM COVER UPPER SECTION1
2
07 14 9 128 053
FILLISTER HEAD SCREW - D=3,5X10MM1
3
06 32 7 651 212
BINDING HEAD SCREW - M5X16-A2-801
