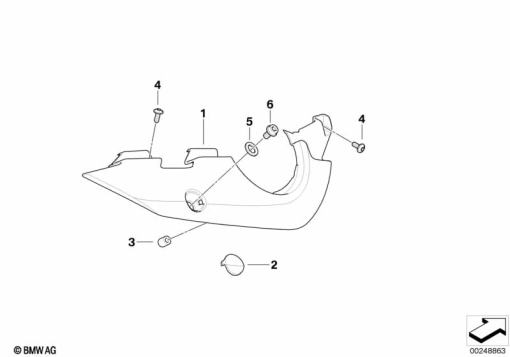

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 522 543 | LATERAL TRIM PANEL REAR LEFT - RED-ORANGE | - | |
46 62 8 522 544 | LATERAL TRIM PANEL REAR RIGHT - RED-ORANGEAlternative for position 1 | - | ||
46 62 7 727 175 | LATERAL TRIM PANEL REAR LEFT - AURA-WHITEAlternative for position 1 | - | ||
46 62 7 727 176 | LATERAL TRIM PANEL REAR RIGHT - AURA-WHITEAlternative for position 1 | - | ||
| 2 | 46 62 8 522 551 | COVERING CAP LEFT - RED-ORANGE | - | |
46 62 8 522 552 | COVERING CAP RIGHT - RED-ORANGEAlternative for position 2 | - | ||
46 63 8 526 933 | COVERING CAP LEFT - AURA-WHITEAlternative for position 2 | - | ||
46 63 8 526 934 | COVERING CAP RIGHT - AURA-WHITEAlternative for position 2 | - | ||
| 3 | 46 63 7 650 963 | BUMP STOP | - | |
| 4 | 06 32 7 651 204 | FILLISTER HEAD SCREW - M6X16-A2-80 | - | |
| 5 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
| 6 | 07 12 9 905 868 | ISA SCREW - M8X16-ZNNIV SI | - |
