G650GS 10-15 (R131) | Frame, Fairing, Cases

TANK COVER, CENTER

Diagram #46_1355 | 3 parts

100%

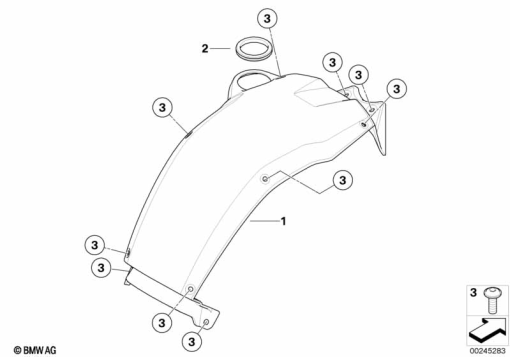

G650GS 10-15 (R131) TANK COVER, CENTER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 7 727 169
COVERING CENTER1
2
46 63 7 727 155
GROMMET1
3
46 63 7 657 650
FILLISTER HEAD SCREW - M5X141
